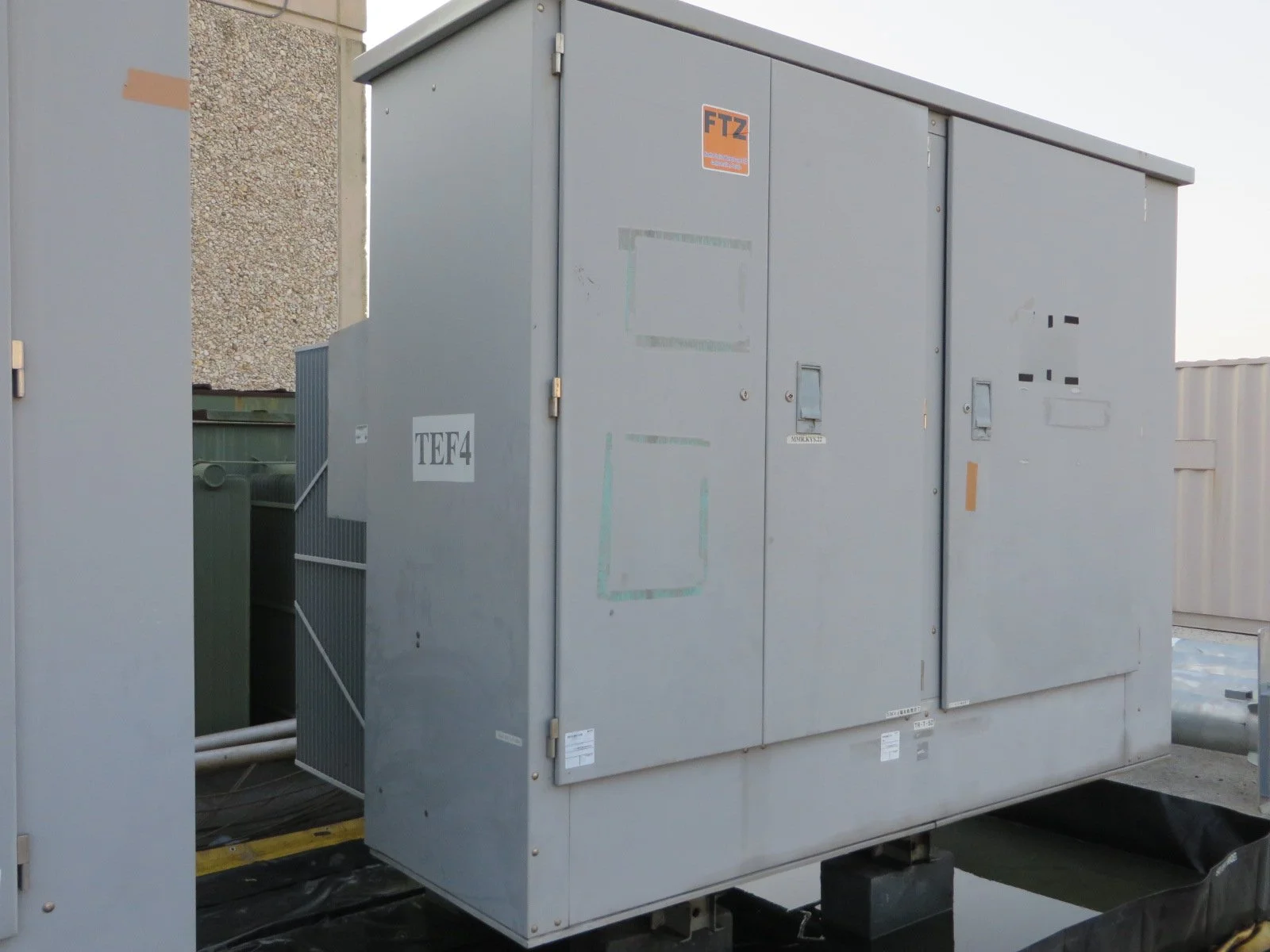

4MVA GSU Pad-mount Transformers 50/60Hz 34,500V x 480V
Four units for sale
Generator step-up transformers, four units available
Enclosed padmount style
Separate LV and HV enclosures
Built 2011
Mfg: JSHP, China
480V Delta primary @ 60Hz
34,500V Wye Secondary @ 60Hz
415 Delta primary @ 50Hz
33,000V Wye secondary @ 50Hz
Bussbar connections on LV
Deadfront connections on HV
Plugs included
Loop feed connections on HV
Transformers can be used as step-down units, also
Transformers were deployed one time and have been in storage since.
Units are currently under Customs bond, they can be sold for export or domesticated
